HD Rigid GenScope Borescopes

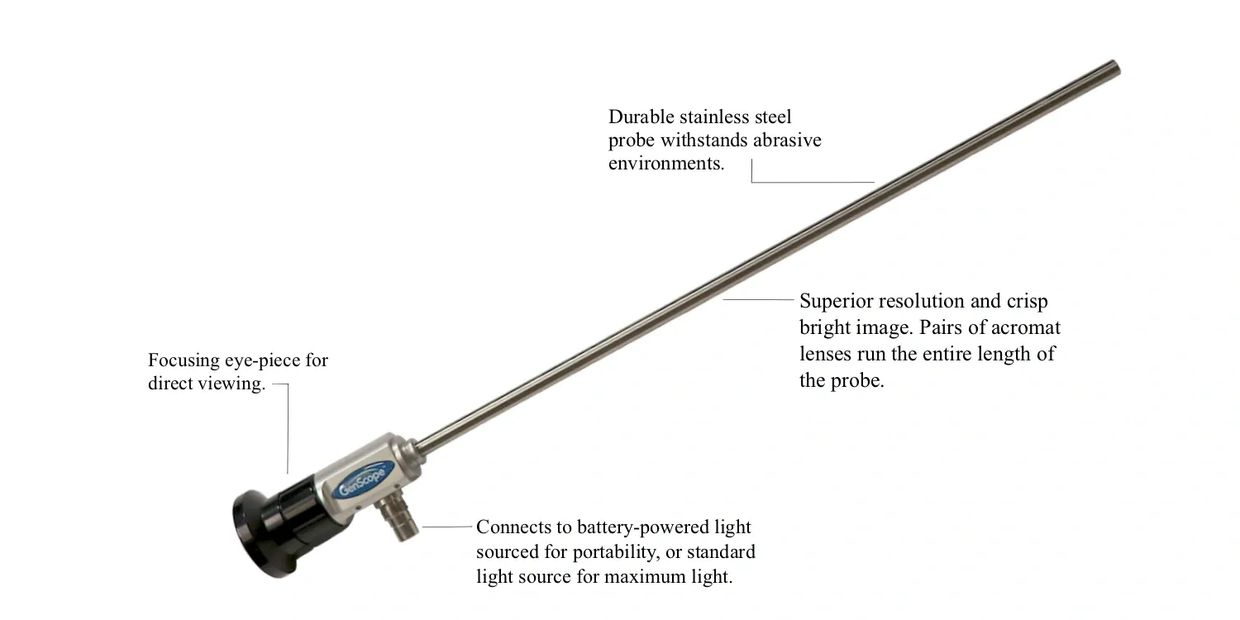

GenScope’s Heavy-Duty Rigid Borescopes are built for durability and high-performance imaging in demanding inspection environments. Constructed with a rugged stainless-steel probe and an achromatic lens system, these scopes deliver bright, sharp visuals with minimal distortion. Available in multiple diameters and lengths, they are ideal for inspections that require rigidity, precision, and optical clarity.

These scopes support both AC-powered high-intensity LED light sources (via lightguide) or portable battery-powered lights for field use. All models are camera-compatible, including USB camera connectivity for real-time viewing, image capture, and documentation. Diameters range from 4.2 mm, 5.5 mm, 8.0 mm, and 10.0 mm; lengths from 5.5 in to 41 in.

Key Features:

• Rugged Stainless-Steel Construction: Designed for heavy-duty industrial use where durability and rigidity are required.
• Achromatic Lens System: Provides bright, clear, and color-accurate imaging with reduced distortion.
• Viewing Options: Offered in forward-view or dedicated right-angle models.
• Rotating Mirror Sleeve: Forward-view scopes can be paired with a 90° right-angle mirror sleeve that rotates 360° for expanded visibility.
• Lighting Versatility: Compatible with both high-intensity AC-powered LED light sources (via lightguide) and portable battery-powered LED sources.
• Camera Integration: Supports USB camera systems for computer-based inspection, video recording, and image capture.

Applications:

• Aerospace: Inspection of turbine housings, airframe structures, fuel systems, and precision-machined components.
• Automotive & Heavy Machinery: Examination of cylinder heads, gearboxes, injectors, hydraulics, and engine components.
• Manufacturing & Quality Control: Internal inspection of castings, welds, tubing, and fabrication defects in production environments.
• Energy & Power Generation: Maintenance of boilers, heat exchangers, turbines, and industrial piping systems.
• Defense & Industrial Maintenance: Visual diagnostics in armored systems, pressure vessels, and structural components requiring durability and clarity.

Are you unsure of what you need? GenScope specialists work with you to identify your specific needs and develop a personalized solution. Reach out by clicking the 'Contact Us' button, then leave the rest to us.
