GenScope MicroFlex Borescope

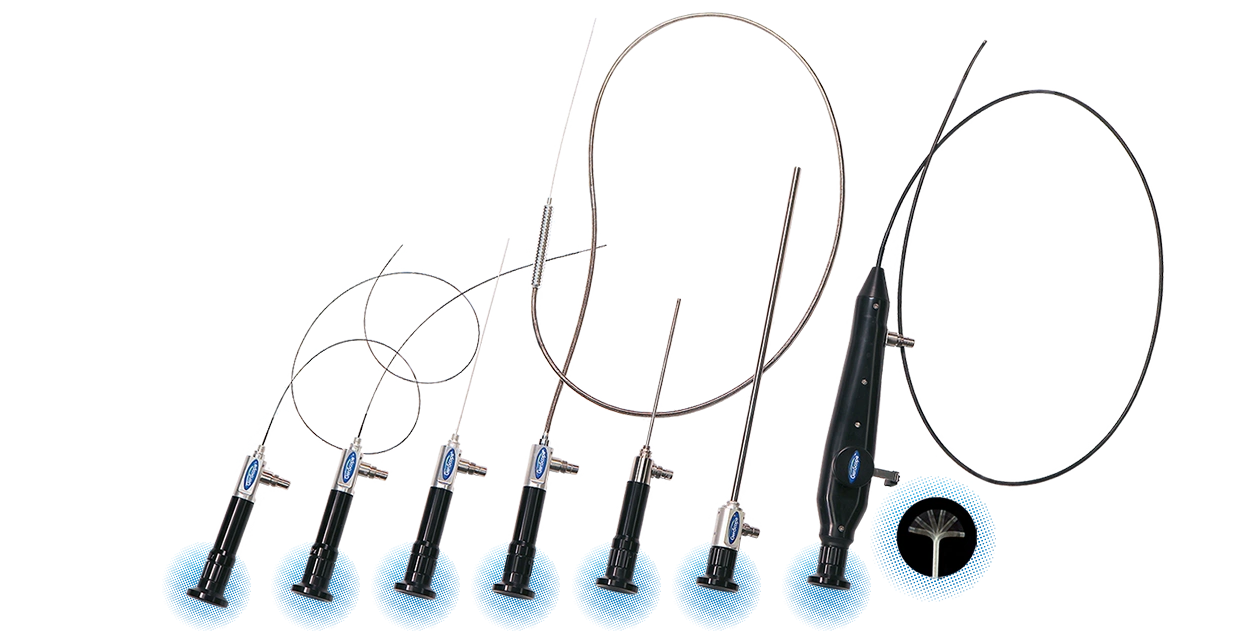

This line of very small-diameter borescopes meets the need for rugged and affordable flexible scopes in the smallest diameters. Users like the fact that all GenScope Micro Flex borescopes use the same interchangeable quick-focusing eyepiece that adjusts to your vision. These Micro-Diameter Flexible GenScope borescopes can also easily attach to video systems for viewing on a monitor and recording images.
Our Micro Flex borescopes move easily through narrow turning channels in turbine blades, fuel injection systems, hydraulics, injector nozzles, compressors, medical devices, and tubing.
The Micro SemiRigid GenScope borescope has a probe constructed with a thin stainless steel tube as the outer layer. This provides a rugged protective sheath for the fiberoptic image guide and lens system. SemiRigid GenScope borescopes bow under pressure for both durability and flexibility in tight areas. It is one of the best compact portable designs on the market today, providing superior image quality and durability.
Micro SemiRigid borescopes are used in tiny openings and small cavities including fuel injectors, precision machine parts and turbine blades. They are ideal for highly repetitious inspections. The broad selection of small diameters provides superior imaging in even the smallest voids.
The PenHandle GenScope borescope combines the value and durability of a SemiRigid with the ease of use of a flexible scope. Micro-diameter semi-rigid PenHandle borescopes offer light maneuverability and are excellent for fast-paced, high-volume, repetitious in-line inspections.
PenHandle GenScope borescopes utilize a fused quartz fiber image bundle housed in a stainless-steel tube and are available in diameters from 0.5mm to 3.0mm and lengths from 3 inches to 20 inches. They are available both in forward view and dedicated right angle view. Additionally, a forward view GenScope can utilize a Right-Angle Mirror Sleeve that rotates 360 degrees.
As always, all GenScope borescopes can be connected to a camera and utilize an interchangeable eyepiece and a direct-to-camera adapter.
The GenScope Micro-Diameter Rigid line of borescopes provides the best image quality in a very small-diameter borescope. The Micro-Diameter Rigid borescope is best when you need to see very fine cracks, sharp edges, discolorations, and minute defects or details. They offer the best image quality when you have straight inline access to the smallest inspection areas
Typical applications are weld inspections, turbine blades and fuel injectors. Micro-Rigid borescopes are the best solution any time a small diameter and the best image quality is required.
Two-Way Articulating Flexible GenScopes are constructed with fused quartz image bundles, which make for rugged but flexible borescopes. The ability to articulate or steer the tip of the scope makes it possible to navigate complex openings in difficult interior inspections. The handle is ambidextrous and ergonomically designed for ease of use.
These scopes use either a battery-powered lightsource for portability or a standard lightsource for maximum light. They are typically used in curved or tight passageways with corners, for example in aerospace or automotive industries. All GenScopes can be used with a camera, the USB camera connects to a computer for image and inspection.
GenScope's Heavy Duty Rigid borescopes are very durable and can withstand a more abrasive environment. Additionally, they are less expensive than some other scopes, thus proving to be extremely useful in practical, every day applications. Many customers say this particular GenScope borescope is the workhorse of inspection, as a wide variety of inspections can be performed with these scopes.
Heavy-Duty Rigid GenScopes are used in industrial applications where a straight entry is available as found in engine blocks, aircraft engines and rifle barrels.
GenScope offers a variety of borescope accessories. Lighting accessories include several light sources, light guides, and micro-diameter light probes.
All GenScope borescopes are adaptable for use with a videocamera which allows for inspection and image capture. A variety of cameras, monitors, adapters, and cables are available to meet your inspection requirements. Additionally, GenScope offers an adjustable fixture to hold the camera and scope in position for ease of inspection. Adapters are available to connect a GenScope borescope to a camera.
